除了前面介紹的 [*nix] Resources Monitor: Top Command 之外

vmstat 也是 *nix 上一個對資源監控的指令

按照 man page 的說法: Report virtual memory statistics

它主要呈現的是虛擬記憶體的相關統計數據

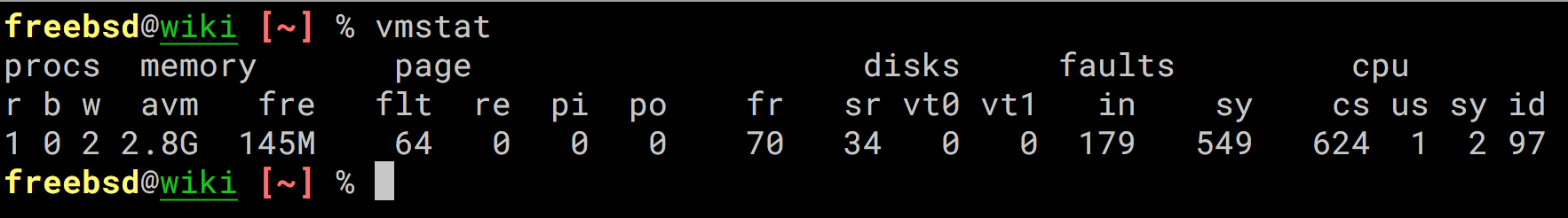

FreeBSD:

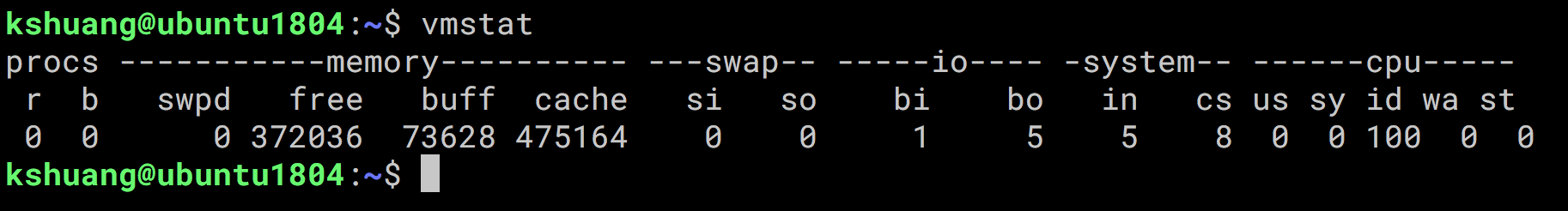

Ubuntu:

兩個系統輸出的欄位有些許不同，底下我們個別說明

procs

Information about the numbers of processes in various states.

簡單說，這個區塊顯示了不同狀態的 process 的統計數量

• r: 在 run queue 中的 process 數量
• b: blocked for resources 的 process 數量，像是 i/o, paging 等
• w: runnable or short sleeper (< 20 secs) but swapped

memory

這區則是關於 virtual memory 與 real memory 的使用情況

• avm: active virtual pages，memory virtual pages 視為 active 的條件為: 這個分頁的記憶體所屬的 process，在過去 20 mins 內有 active
• fre: size of the free list

page

關於 page faults 和 paging activity 的訊息

• flt: total number of page faults
• re: page reclaims (simulating reference bits)
• pi: pages paged in
• po: pages paged out
• fr: pages freed per second
• sr: pages scanned by clock algorithm, per-second

disks

Disk operations per second (this field is system dependent).

每秒的磁碟操作次數

這個欄位名稱是由 disk name 的前兩字母和識別數字組成

如果有兩個以上的 disk device 預設顯示是兩個 disks，除了用 -n 參數另外下

faults

Trap/interrupt rate averages per second over last 5 seconds.

• in: device interrupts per interval (including clock interrupts)
• sy: system calls per interval
• cs: cpu context switch rate (switches/interval)

cpu

Breakdown of percentage usage of CPU time.

• us: user time for normal and low priority processes
• sy: system time
• id: cpu idle

Procs

• r: The number of runnable processes (running or waiting for run time).
• b: The number of processes in uninterruptible sleep.

Memory

• swpd: the amount of virtual memory used.
• free: the amount of idle memory.
• buff: the amount of memory used as buffers.
• cache: the amount of memory used as cache.

Swap

• si: Amount of memory swapped in from disk (/s).
• so: Amount of memory swapped to disk (/s).

IO

• bi: Blocks received from a block device (blocks/s).
• bo: Blocks sent to a block device (blocks/s).

System

• in: The number of interrupts per second, including the clock.
• cs: The number of context switches per second.

CPU

這一區基本上跟 top command 看到的那幾個欄位是一樣的

• us: 運行在 user space 的 processes 所佔用的 CPU time 比例
• sy: kernel space 的 processes 所佔用的 CPU time 比例
• id: 閒置的 CPU 比例
• wa: 等待 IO 所佔用的 CPU time 比例
• st: time stolen from this vm by the hypervisor
