• Introduction
• File Information
• File Permissions
• File Systems
• Directory Operations
• Device Special Files

File Name

• 檔名可以是除了 slash (/) 和 null (\0) 的所有字元
• 檔名長度上限一般是 255 chars (PATH_MAX constant)
• 每個資料夾必定包含兩個檔案
  • . : 表示當前目錄
  • .. : 表示上層目錄
• 檔名編碼由 user terminal 決定，和檔案內容編碼無關

Path Name

• 絕對路徑: 由斜線開頭，從根目錄開始表示
• 相對路徑: 不由斜線開頭，從當前目錄開始表示

Directory

• Working Directory
  • 每個 Process 都有自己的 Working Directory
  • 又稱 current working directory
  • 可以用 chdir 指令改變
• Home Directory
  • 使用者登入時的預設 Working Directory
  • 記錄在 /etc/passwd 檔案中

stat, fstat, lstat Functions

#include <sys/types.h>
#include <sys/stat.h>
#include <unistd.h>

int stat(const char *path, struct stat *buf);
int fstat(int fd, struct stat *buf);
int lstat(const char *path, struct stat *buf);
/* Returns: 0 if OK, -1 on error */

struct stat {
    dev_t     st_dev;     /* ID of device containing file */
    ino_t     st_ino;     /* inode number */
    mode_t    st_mode;    /* protection */
    nlink_t   st_nlink;   /* number of hard links */
    uid_t     st_uid;     /* user ID of owner */
    gid_t     st_gid;     /* group ID of owner */
    dev_t     st_rdev;    /* device ID (if special file) */
    off_t     st_size;    /* total size, in bytes */
    blksize_t st_blksize; /* blocksize for file system I/O */
    blkcnt_t  st_blocks;  /* number of 512B blocks allocated */
    time_t    st_atime;   /* time of last access */
    time_t    st_mtime;   /* time of last modification */
    time_t    st_ctime;   /* time of last status change */
};

• 這些函式主要會回傳關於檔案的資訊
• stat 和 lstat 基本上相似，主要差別在 stat 會跟隨 symbolic link 顯示檔案資訊，lstat 則不跟隨 symbolic link，而是顯示 symbolic link 本身資訊
• fstat 則是在參數部分使用 file description，不同於 stat 和 lstat 使用路徑，fstat 可以取得開啟中的檔案資訊

Common File Information

• File type and permissions
• Number of hard links
• User ID and group ID
• Device number (of the containing file system)
• Device number for special files
• File size
• Block size and number of used blocks
• Timestamps: access, modification, and change

File Types

• Regular file
• Directory file
• Block special file (usually use in device drivers)
• Character special file
• FIFO (named pipe)
• Socket (UNIX socket)
• Symbolic link

這邊可以先參考 SUID & SGID in UNIX 這篇

#include <sys/types.h>
#include <unistd.h>

int setuid(uid_t uid);
int setgid(gid_t gid);
/* Return 0 if OK, -1 if error */

程式在執行時可以透過 setuid, setgid function 來改變 euid, egid

File Access Permissions

• access 需要 execute permissions
• open file for read 需要 read permissions
• open file for write or truncate 需要 write permission
• delete an existing file in a directory 只需要對資料夾有 write and execute permissions
• executable file 需要 execute permission

File access test precedence

• If the EUID of the process is 0, access is allowed
• If the EUID of the process equals the owner ID of the file, access is allowed if the appropriate user access permission bits are set
• If the EGID or supplementary GIDs of the process equals the group ID, access is allowed if the appropriate group access permission bits are set
• If the appropriate other access permission bits are set, access is allowed

符合四項中的其中一項即有存取權限

Ownership of New Files and Directories

• 新檔案的 user ID 會設置成創造檔案的 process 的 EUID
• 新檔案的 group ID 可能被設置成:
  • The EGID of the creating process
  • The GID of the parent directory
• GID 部分是依照 OS 實作情況決定
  • FreeBSD 5.2.1/Mac OS X 10.3 – by the parent directory
  • Linux – depends on a mount option (grpid)
    • If grpid is set or directory has SGID – by the parent directory
    • Otherwise – by the EGID of the creating process

access Function

#include <unistd.h>

int access(const char *pathname, int mode);
/* Return 0 if OK, -1 on error */

• 可以用來檢查 process 對某檔案是否有存取權限
• mode 可以用 bitwise OR 連接屬性
• R_OK, W_OK, X_OK, F_OK 這幾個 mode 分別可以用來檢測讀, 寫, 執行權限和檢測檔案是否存在
• 此函式是以 real UID, real GID 去檢測，而 open 函式是以 euid, egid 去開檔，所以可能發生 access 顯示無權限，但 open function 可用的情況

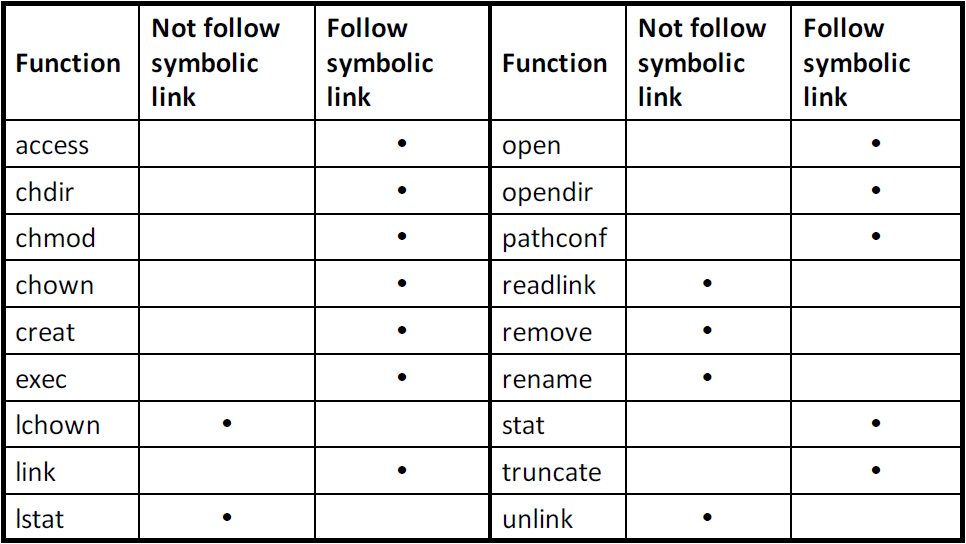

• 不跟隨 symbolic link

a.out

#include "apue.h"
#include <fcntl.h>

int main(int argc, char *argv[])
{
    if (argc != 2)
        err_quit("usage: a.out <pathname>");
    if (access(argv[1], R_OK) < 0)
        err_ret("access error for %s", argv[1]);
    else
        printf("read access OK\n");
    if (open(argv[1], O_RDONLY) < 0)
        err_ret("open error for %s", argv[1]);
    else
        printf("open for reading OK\n");
    exit(0);
}

$ ls -l a.out
-rwxrwxr-x 1 sar 15945 Nov 30 12:10 a.out
$ ./a.out a.out
read access OK
open for reading OK
$ ls -l /etc/shadow
-r-------- 1 root 1315 Jul 17 2002 /etc/shadow
$ ./a.out /etc/shadow
access error for /etc/shadow: Permission denied
open error for /etc/shadow: Permission denied
$ sudo su - become superuser
Password: enter superuser password
# chown root a.out change file's user ID to root
# chmod u+s a.out and turn on set-user-ID bit
# ls -l a.out check owner and SUID bit
-rwsrwxr-x 1 root 15945 Nov 30 12:10 a.out
# exit go back to normal user
$ ./a.out /etc/shadow
access error for /etc/shadow: Permission denied
open for reading OK

umask Function

#include <sys/types.h>
#include <sys/stat.h>

mode_t umask(mode_t mask);
/* previous file mode creation mask */

• sets the calling process's file mode creation mask
• mode 可用選項有 S_IRUSR | S_IWUSR | S_IRGRP | S_IWGRP | S_IROTH | S_IWOTH 分別代表 user, group, other 的 read, write 權限
• umask 一般的預設值為 S_IWGRP | S_IWOTH (022)
• 假設 create 使用了 RWRWRW 權限 (666)，則預設 umask (022)，最後結果為 0666 & ~022 = 0644

#define RWRWRW (S_IRUSR|S_IWUSR|S_IRGRP|S_IWGRP|S_IROTH|S_IWOTH)

int main(void)
{
    umask(0);
    if (creat("foo", RWRWRW) < 0)
        err_sys("creat error for foo");
    umask(S_IRGRP | S_IWGRP | S_IROTH | S_IWOTH);
    if (creat("bar", RWRWRW) < 0)
        err_sys("creat error for bar");
}

$ umask   // first print the current file mode creation mask
002
$ ./a.out
$ ls -l foo bar
-rw------- 1 sar 0 Dec 7 21:20 bar
-rw-rw-rw- 1 sar 0 Dec 7 21:20 foo
$ umask  // see if the file mode creation mask changed
002

Set File Modes and Ownerships

#include <sys/stat.h>

int chmod(const char *path, mode_t mode);
int fchmod(int fd, mode_t mode);

• 用來改變檔案權限
• 不跟隨 symbolic link
• mode:
  • S_ISUID (4000): set-user-ID
  • S_ISGID (2000): set-group-ID
  • S_ISVTX (1000): sticky bit
  • S_IRUSR (0400): read by owner
  • S_IWUSR (0200): write by owner
  • S_IXUSR (0100): execute/search by owner
  • S_IRGRP (0040): read by group
  • S_IWGRP (0020): write by group
  • S_IXGRP (0010): execute/search by group
  • S_IROTH (0004): read by others
  • S_IWOTH (0002): write by others
  • S_IXOTH (0001): execute/search by others

#include <unistd.h>

int chown(const char *path, uid_t owner, gid_t group);
int fchown(int fd, uid_t owner, gid_t group);
int lchown(const char *path, uid_t owner, gid_t group);
/* Return 0 if OK, -1 on error */

• chown 不跟隨 symbolic link, lchown 跟隨 symbolic link

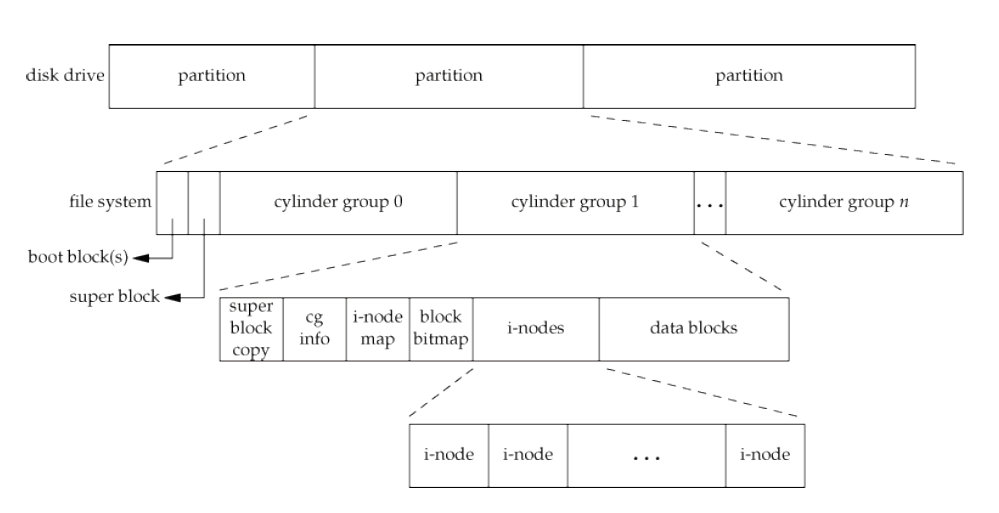

Cylinder Group's i-nodes and Data Blocks

• super block copy: 紀錄 block, i-nodes 的總量、已用數量、未用數量
• i-node map: 紀錄那些 i-node index 是空的
• block bitmap: 紀錄那些 block 是空的，哪些是可用的
• i-node: 紀錄檔案的資訊，如: type, permission, data blocks, timestamps, reference counts 等
• i-node 通常會以正整數做 index
• 有些 i-node number 有特別意義
  • 0: reserved, or does not exist
  • 1: list of bad/defective blocks
  • 2: root directory of a partition
• data blocks: 檔案內容真正存放的地方

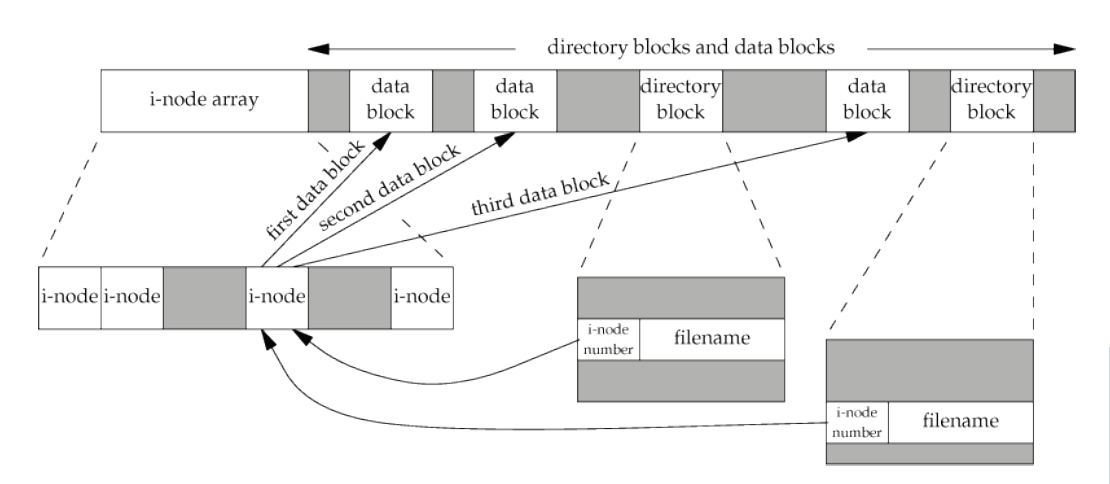

i-node 可被多個 entry 指到

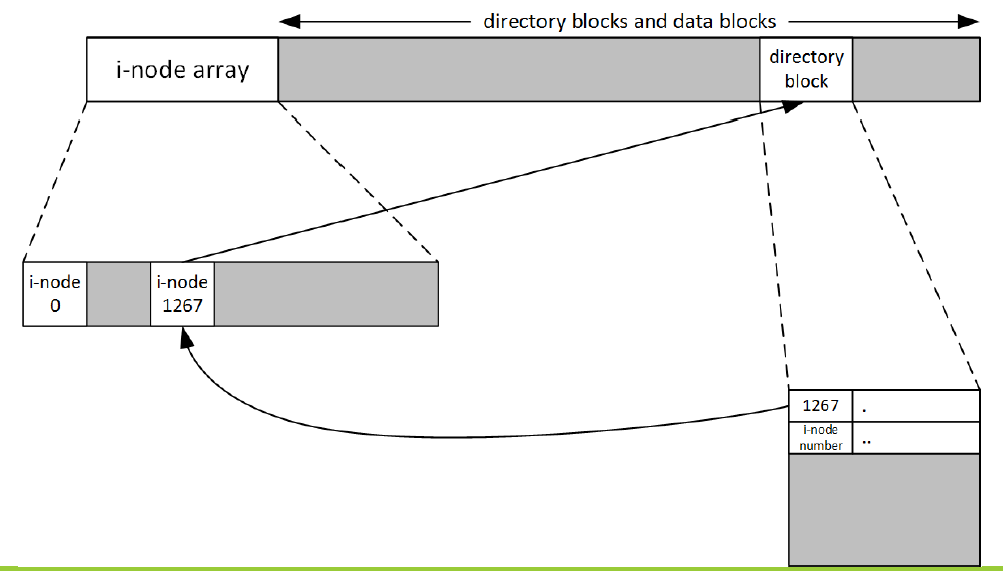

建立資料夾前的 i-node 示意圖:

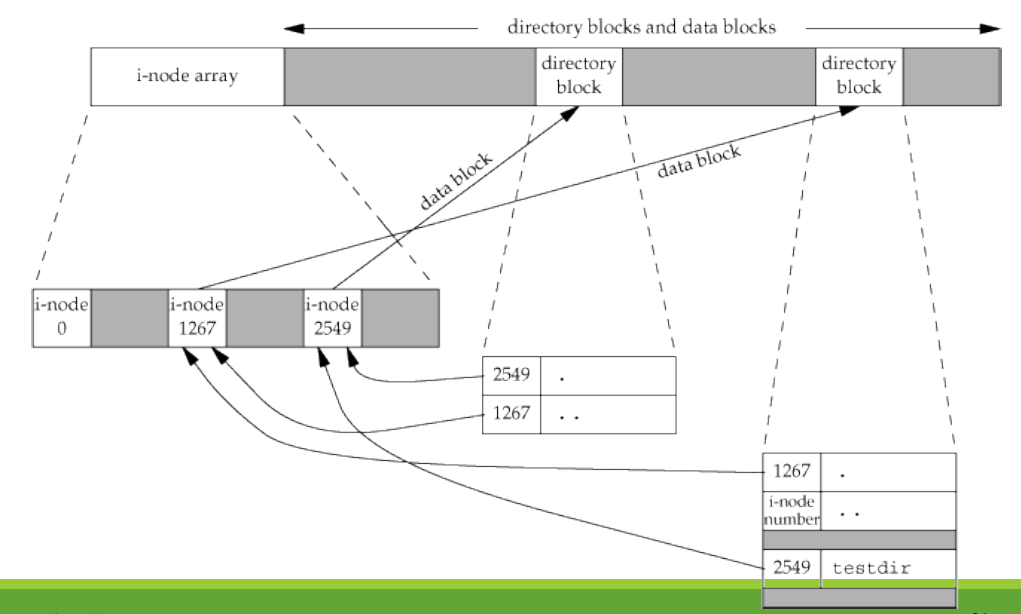

建立資料夾後的 i-node 示意圖:

• 建立新資料夾產生新的 i-node 2549，其中紀錄了 directory block 資訊
• directory 中紀錄了新目錄中的當前目錄 (.)，指向自己的 i-node 跟上層目錄 (..) 指向父資料夾的 i-node
• 父資料夾的 directory block 產生了新的資料內容，即為我們建立的 testdir，指向 i-node 2549

Reference Counts

• 表示指向這個 i-node 的數量
• 剛建立的檔案 reference count 為 1，是檔案所在的資料夾指過來的
• 剛建立的資料夾 reference count 為 2，是資料夾中當前目錄(自己指向自己) 和上層目錄指過來的
• link(2) 會增加 reference count，是 hard-link，必須在同一個 partition
• unlink(2) 則會減少 reference count

#include <unistd.h>

int link(const char *oldpath, const char *newpath);
int unlink(const char *pathname);
/* Returns: 0 if OK, -1 on error */

#include <stdio.h>

int remove(const char *pathname);
int rename(const char *oldpath, const char *newpath);
/* Returns: 0 if OK, -1 on error */

Relevant Commands

• ls -l: long listing format, check the reference count
• ls -ls: show file sizes in 1KB blocks
• ls -li: show i-node numbers

Symbolic links

• 又稱 soft-links
• ln(1) command
• symbolic link 的大小是目標檔案的檔名長度
• soft-links 可指向一個不存在的檔案
• soft-links 可指向任何檔案格式
• hard link 只能指向 regular file，且不可跨分割區

#include <unistd.h>

int symlink(const char *actualpath, const char *sympath);       /* Returns: 0 if OK, -1 on error */
ssize_t readlink(const char *path, char *buf, size_t bufsiz);   /* Returns: number of bytes placed in the buffer, -1 on error */

• symlink create a symbolic link sympath points to the actualpath
• readlink reads the targeted pathname of the given symbolic link path

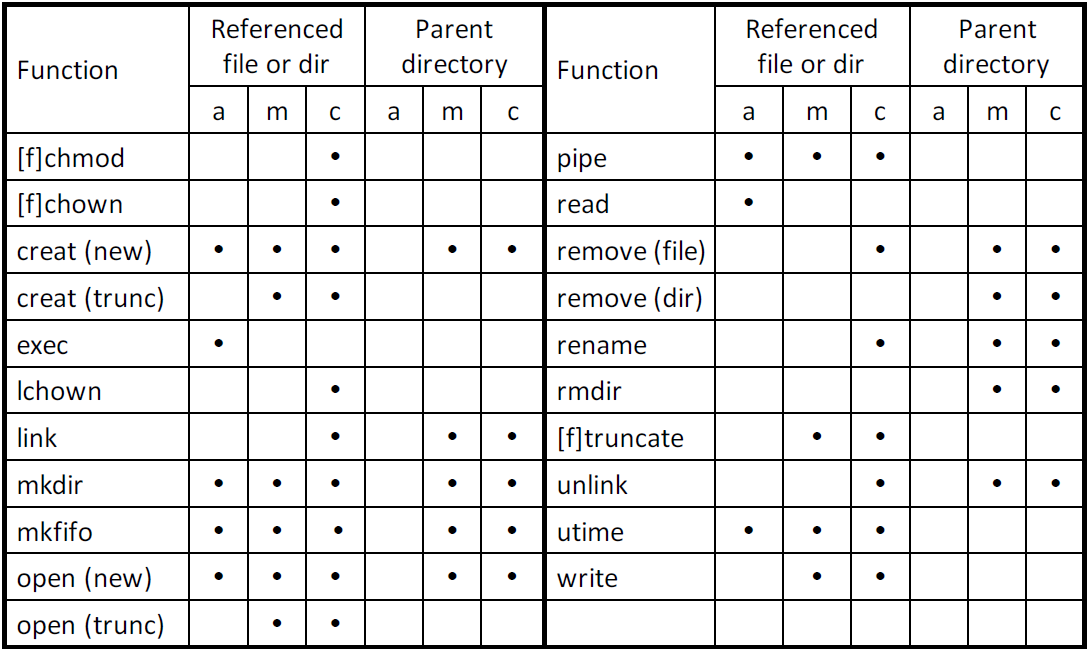

File Times

utime Function

#include <sys/types.h>
#include <utime.h>

int utime(const char *filename, const struct utimbuf *times);
/* Returns: 0 if OK, -1 on error */

struct utimbuf {
    time_t actime;       /* access time */
    time_t modtime;      /* modification time */
};


#include <sys/time.h>

int utimes(const char *filename, const struct timeval times[2]);
/* Returns: 0 if OK, -1 on error */

struct timeval {
    long tv_sec;        /* seconds */
    long tv_usec;       /* microseconds */
};

• Change the access time and modification time of a file
• 如果 times 參數給 NULL，則會被設置為目前時間

mkdir and rmdir function

#include <sys/stat.h>
#include <sys/types.h>

int mkdir(const char *pathname, mode_t mode);
/* Returns: 0 if OK, -1 on error */

#include <unistd.h>

int rmdir(const char *pathname);
/* Returns: 0 if OK, -1 on error */

• mkdir 建立相對應權限的資料夾
• 當使用 rmdir 刪除資料夾時:
  • 如果資料夾不是空的，function 會回傳 -1
  • 如果資料夾是空的，且沒有 process 正開啟這個資料夾，則資料夾會被刪除並釋放空間
  • 如果資料夾是空的，但有 process 正開啟這個資料夾，則資料夾會被刪除但暫時不會釋放空間，此時已經無法再被刪除的資料夾內建立任何檔案，當 process 關閉資料夾後，資料夾便會被釋放

Reading Directories

資料夾的 access 權限:

• Read: must have read and execute permission
• Create/write: must have write and execute permission

#include <sys/types.h>
#include <dirent.h>

DIR *opendir(const char *name);
/* Returns: pointer to the directory if OK, NULL on error */

DIR *fdopendir(int fd);

#include <dirent.h>

struct dirent *readdir(DIR *dirp);
/* Returns: pointer to a dirent structure if OK, NULL on reaching EOF or error */

struct dirent {
    ino_t d_ino;               /* inode number */
    off_t d_off;               /* offset to the next dirent */
    unsigned short d_reclen;   /* length of this record */
    unsigned char d_type;      /* type of file */
    char d_name[256];          /* filename */
};

• 一開始會指向資料夾的第一個檔案，每次呼叫readdir就會往後一個檔案

#include <sys/types.h>
#include <dirent.h>

int closedir(DIR *dirp);
/* Returns: 0 if OK, -1 on error */

Seek in an Opened Directory

#include <sys/types.h>
#include <dirent.h>

void rewinddir(DIR *dirp);
/* Returns: current location of the opened dir */

long telldir(DIR *dirp);
/* Returns: current location of the opened dir */

void seekdir(DIR *dirp, long offset);

• rewinddir: resets the position of the directory stream dirp to the beginning of the directory.
• telldir: returns the current location associated with the directory stream dirp.
• seekdir: set the location(offset) in the directory stream, offset 的起點是目前下個獨進來的點，也就是下一次 readdir 的位置

chdir, fchdir, getcwd

Every process has a current working directory

• The current working directory is inherited from the parent
• The current working directory for each process is independent

#include <unistd.h>

int chdir(const char *path);
/* Returns: 0 if OK, 1 on error */

int fchdir(int fildes);
/* Returns: 0 if OK, 1 on error */

#include <unistd.h>

char *getcwd(char *buf, size_t size);
/* Returns: buf if OK, NULL on error */

• chdir: change working directory
• fchdir: 同 chdir，只是使用 file description 指定檔案
• getcwd: get current working directory

每個系統檔案都有他的 major/minor device numbers，編碼後儲存在 system type dev_t

• major number 用於識別 device driver，可以用 major(dev_t)
• minor numbers 用於識別 specific sub device，可以用 minor(dev_t)

在前面的 struct stat 中有 st_dev 和 the st_rdev 有什麼差別?

int main(int argc, char *argv[])
{
    int i;
    struct stat buf;

    for (i = 1; i < argc; i++)
    {
        printf("%s: ", argv[i]);

        if (stat(argv[i], &buf) < 0)
        {
            err_ret("stat error");
            continue;
        }

        printf("dev=%d/%d", major(buf.st_dev), minor(buf.st_dev));

        if (S_ISCHR(buf.st_mode) || S_ISBLK(buf.st_mode)) // 是 character 或是 block
        {
            printf(" (%s) rdev = %d/%d", (S_ISCHR(buf.st_mode)) ? "character" : "block", major(buf.st_rdev), minor(buf.st_rdev));
        }

        printf("\n");
    }
    exit(0);
}

$ ./fig4.25-devrdev / /dev /home/chuang /dev/tty0 /dev/sda2
/: dev = 8/2
/dev: dev = 0/14
/home/chuang: dev = 8/2
/dev/tty0: dev = 0/14 (character) rdev = 4/0
/dev/sda2: dev = 0/14 (block) rdev = 8/2

• Every file has a st_dev number, which indicates the container file system
• Only device files have st_rdev numbers, which indicates the device/sub-device
• mknod command: make block or character special files

Common Device Special Files

• /dev/hdaN? – IDE disks and partitions
• /dev/sdaN? – SCSI or SATA disks and partitions
• /dev/scdN – CD/DVD-ROMs
• /dev/ttyN – terminals
• /dev/ttySN – COM ports
• /dev/pts/N – pseudo terminals
• /dev/null
• /dev/zero
• /dev/random
